MODEL 9505DF1 Peak Reading Digital Mobility/Lubricity Tester
Images
Click Image to enlarge and scroll through photos
Description

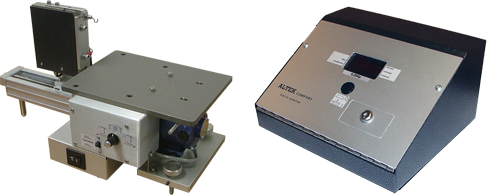

The MODEL 9505DF1 Mobility / Lubricity Tester is used to determine the coefficient of friction of decorated or coated
body blanks or cans. The 9505DF1 tests can bottoms and many other flat materials as well.
Operation
An appropriate set of Change Parts, determined by the type and size of can or sample being tested, are installed on
the tester. The sample is mounted on the change part and a test sequence is initiated. By traversing a weight across
a sample, or a can bottom across a set of polished rods, the peak coefficient of friction value is captured and indicated
directly on the digital display of the electronic package and transmitted via the RS-232 serial port.
Change Parts
This unit requires the use of Change Parts. Please see 9770A/9971B ; 9791A ; or 9793A for further information.
Features

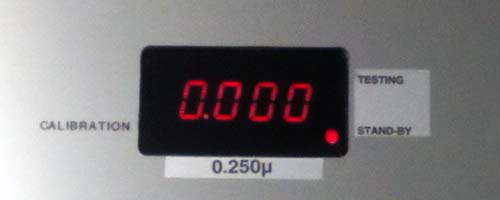

DIGITAL DISPLAY OF PEAK RESULTS FOR
COEFFICIENT OF FRICTION
Click here to view PDF of complete product information.
